This Device must be used together with an Andor BoB-A. See the BoB (Breakout Box) section for more details.

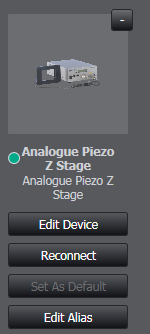

Once added to the active devices in Device Hub, it will provide the following features to the Advanced section:
Minimum: The smallest value the analogue piezo device can move to (either zero or negative value of the piezo's half travel range).
Maximum: The maximum value the analogue piezo device can move to (either its travel range or positive value of the piezo's half travel range).
Settling Time: The time allowed for the piezo to reach its target position. Smaller values will result in faster Z-stacks, but may result in incorrect Z positions because the software / camera may capture images faster than the piezo device can move.
Piezo Inverted: Inverts the voltage range of the Piezo, inverting the devices movement.
