Protocol Channels

All channels that have been created are available to add to the current protocol. To add a channel to a protocol:

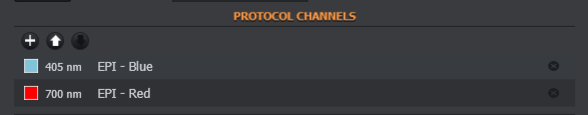

1. Navigate to the Protocol Manager Panel
2. Select the protocol in the Select Protocol drop-down box.
3. Click the + button

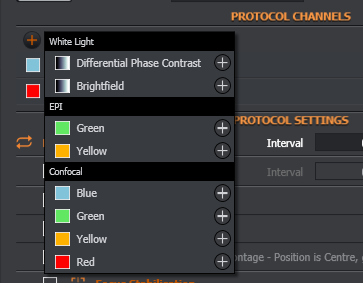

4. Select the required Channel from the list to add it to the protocol.
5. You can also click the + button on a channel to add it to the protocol while keeping this popup on screen. This is useful if you wish to add more than 1 channel to the protocol.

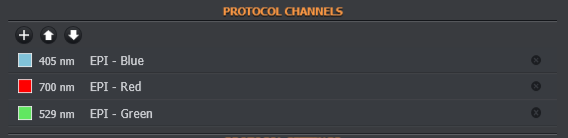

6. The channel is now added to the current protocol, in this example, "EPI - Green".



To remove a channel from the protocol, simply click the x button on the right hand side of the channel.

To view a video tutorial for this topic, please click Image acquisition: Combine DPC with Confocal or Widefield

Or for information on protocol creation please click Image acquisition: Overview of Protocol Creation
