Rendering

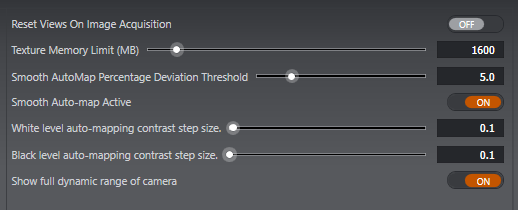

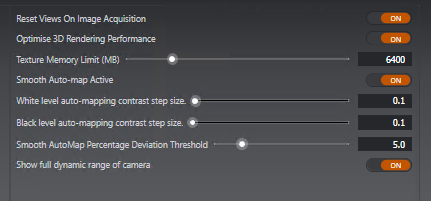

Available Options:

Reset Views on Image Acquisition

Reset the view each time a new image is acquired- this will return any zoom, pan or rotate settings to the default view.

Default: Off

Texture Memory Limit (MB)

Set the amount of graphics card memory used for image rendering.

If one graphics card is present, this should be set to 40% of its total memory.

Default: 3200 * based on 8GB card

*For older 4GB cards, please set to1600.

** For 16GB cards, please set to 6400.

Smooth AutoMap Percentage Deviation Threshold

Adjust the smooth AutoMap percentage deviation threshold. This can be changed between 0.1-25%.

Default: 5.0

Smooth AutoMap active

Enable smooth auto-map. In this mode the display mapping is only adjusted when the change is significant. This reduces flickering due to small variation in image intensity.

Default: On

White level automapping contrast step size

Set the step size for auto-map contrast white level adjustment.

Default: 0.1

Black level automapping contrast step size

Set the step size for auto-map contrast black level adjustment.

Default: 0.1

Show full dynamic range of camera

Shows full dynamic range of camera on the mapping histogram.

Default: On

Note that some changes made in preferences will not take effect until the application has been restarted.

Changes to rendering settings may affect system performance. If this occurs return settings to the default values.
