Fusion Benchtop Software Guide

Hardware

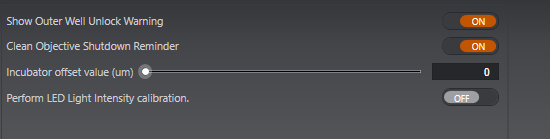

Show Outer Well Unlock Warning

When enabled, the user will be warned when attempting to unlock the outer wells on the UI when using a multiwell plate.

Default: On

Clean Objective Shutdown Reminder

When enabled, you will be prompted to clean the objective if you attempt to shut down Fusion while an Oil Objective is selected.

Default: On

Incubator Offset Value

Specify an offset value (in microns) to apply to all Z movement when using an incubator.

Default: 0

Perform LED Light Intensity Calibration

Perform LED Light Intensity during Focus Stabilisation. After completion, this option will be turned off.

Default: Off
