Adding an Overlay

Overlays can be added to highlight and help compare objects or areas. An overview of overlays is shown in the section Drawing and Contrast Tools.

To set an overlay:

  1. Select the default overlay tag classification by right-clicking the default tag menu item or left-clicking the small white triangle at the bottom right of the icon. In this example, "Analysis".

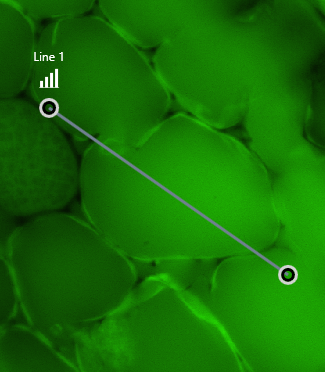

  1. Select an overlay type from the overlay menu by right-clicking the icon or left-clicking the small white triangle at the bottom right of the icon. In this example, the "Line Tool".

Overlay options.png

  1. Use the mouse to position the overlay in the required position.


There are also a number of shortcuts that can be used:

Shortcut

Function

Ctrl-A

Select All

Ctrl-C

Copy selected overlays

Ctrl + left mouse click

Individual select

Delete

Delete selected overlays

To view a video tutorial on this topic, please click Adding an Overlay.mp4.
